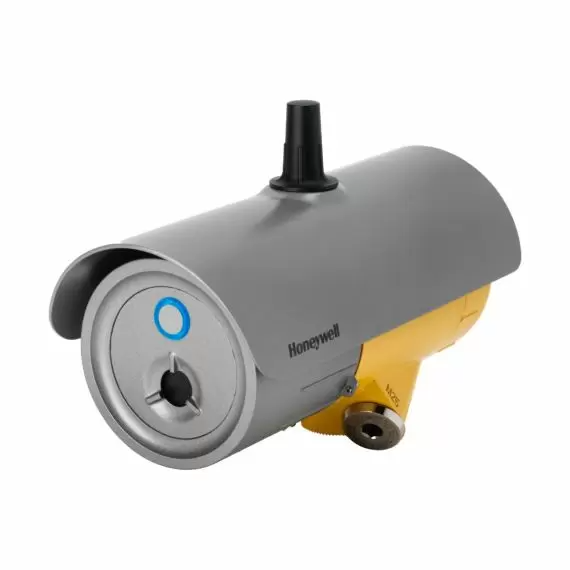

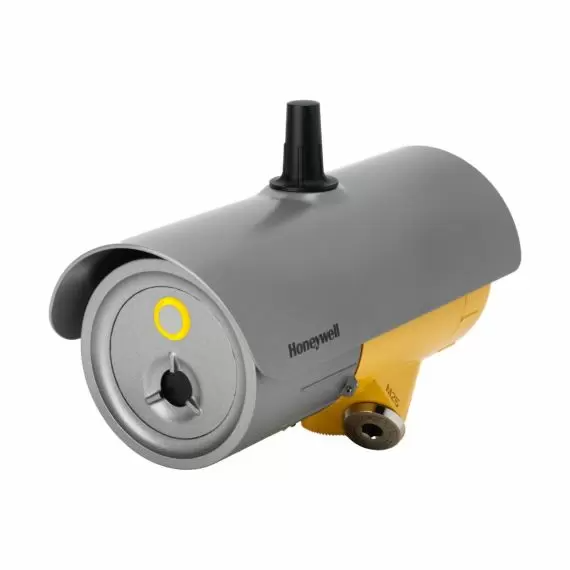

Honeywell SearchZone Sonik™ Gas-Leak Detector
- Maximises the safety and efficiency of your mix of fixed gas detectors
- Provides reliable gas leak detection in a wide range of applications and working environments
- Minimises the risks of false alarms
- Enables quicker, easier installation
- Minimises cost of ownership and saves time
- Increases ease of use with advanced set-up and test tools.
Quantity: | Unit Price ($) |
| 1+ | Contact Us |
Product description
The Honeywell SearchZone Sonik™ Gas-Leak Detector is factory calibrated. Its robust sealed design with no moving parts and the advanced solid-state sensor allow for mounting in any orientation, even in the harshest environments. The acoustic gas leak detector will respond quickly to a gas leak within a sensing range radius of typically 20m (65 ft), dependent upon background noise.
A robust and reliable gas-leak detection device, Searchzone Sonik™ will efficiently “hear” the loss of containment of any high-pressure gas within its listening zone. As it responds to the ultrasonic sound pressure level produced by pressurised gas leaks, it is therefore unaffected by environmental conditions.
No False Alarms:
The high-end spectral analysis delivers best-in-class detection of high-pressure gas leaks in real-world environments.
li>▪ Wide Zone Coverage
Typically 20m (65 ft) detection radius, dependent upon background ultrasonic noise levels.
▪ Complements Existing Gas Detectors
The Searchzone Sonik™ seamlessly integrates with existing point-and-open path gas detectors, thus creating the optimal gas detection mix.
▪ No Moving Parts
The solid-state sensor works flawlessly even in the harshest environments and doesn’t need additional calibration.
▪ Simple Installation and Alignment
The Platform Universal Mount with 3 graduated degrees of freedom enables easy mechanical set-up.
▪ Bluetooth Compatibility
Set-up and interrogation from ground level are available via Bluetooth by using the Honeywell Platform application on IS mobile phones. Depending on the mobile device, the range can reach up to 20 m (65 ft).
▪ Instrument Status at a Glance
The Searchzone Sonik™ features a bright signal light – green, yellow, red, or blue – providing a clear indication of the instrument status.
▪ Full Operational Logs
Enables post-event analysis to assess overall performance and allows security checks.
▪ Fast Commissioning
The Searchzone Sonik™ App allows users to save configurations and upload them to other Searchzone Soniks for quick and easy commissioning.
Product Specification
| GENERAL | |
|---|---|
| Manufacturer | Honeywell |
| Model | Searchzone SonikTM Ultrasonic Gas Leak Detector |
| Part Numbers | SZSK-SMGXX, SZSK-SNGXX |
| GAS DETECTOR SPECIFICATIONS | |
| Sensor Type | Tuned piezoelectric transducer |
| Detection Method | Sound Pressure Level at sensor |
| Frequency Range | 18 kHz to 70 kHz |
| Dynamic Range | 40 dB to 140 dB |
| Calibration | Factory calibrated |
| Detector Range | Typically 20 m on-axis radius (background noise dependant) |
| Recommended Alarm Setting | 6 dB above background noise |
| Cone of Detection | +/- 90 degrees (Standard Mode), +/- 20 degrees (Focus Mode); solid angle from on axis to 6 dB down |
| Speed of Response | Sensor response 1 s; Programmable Verification time from 0s to 600 s. |
| Electronic Self Test | Built in test diagnostics |
| Storage Temperature | -55° C to +75° C (-67 °F to 167 °F) |
| Operating Temperature | -55° C to +75° C (-76 °F to +167 °F) |
| Operating Humidity | 0 to 100% RH |
| Warm-up Time | Less than 5 minutes (operational) |
| Power Supply & Maximum Power Consumption | 24Vdc nominal (18 Vdc to 32 Vdc); 167mA at 24 Vdc (3 W), 4W for ambient operating temperature -30°C and above, 15 W for ambient operating temperature below -30°C (heater is active) |
| Cable entries | 2 x M25 or 2 x 3/4” NPT |
| Outputs | Relays (1 fault, 2 Alarm) – contact rating 2 A (resistive load). Fully configurable 4 – 20 mA isolated, sink or source (maximum loop resistance 600 ohms); Fault < 1 mA, Warning 3 mA, Over-range 22 mA. Linear configurable output corresponding to Sound Pressure Level. |
| Analog Thresholds | 0 mA Fault, 2 mA Inhibit, 4-20 mA Normal Operation |
| Digital Communications | Modbus RTU RS-485. HART® with handheld communicator or hardwired. Bluetooth to smartphone or tablet (20 m range, device dependent). |
| Event Logs | Time stamped |
| Visual Indication | High Visibility light ring; green/yellow/red/blue multi-colour to indicate detector status. Green (normal) indication can be disabled via Searchzone Sonik App. |
| Dimensions | Instrument: 103 dia x 235 x 176 mm Standard Mount: 165 x 165 x 127 mm Large Mount: 210 x 210 x 127 mm |
| Enclosure Material | Stainless Steel 316L; with paint finish |
| Standard Adjustable Mounting Bracket | Stainless Steel. Graduated to enable Searchzone Sonik to be simply mounted and aimed in 5 degree steps, weight 2.9 kg (6.4 lbs) |
| Large Adjustable Mounting Bracket | Stainless Steel. Graduated to enable Searchzone SonikTM to be simply mounted put on one line and aimed in 5 degree steps, weight 3.5 kg (7.7 lbs) |
| Interfaces | Bluetooth® non-intrusive connection to suitable mobile device running the SearchzoneTM Sonik mobile app. Range up to 20 m (mobile device dependant). |
| Vibration | 2 – 60 Hz, maximum peak to peak amplitude 1 mm |
| Ingress Protection (IP) Rating | IP 66 / 67 (Type 4X), according to NEMA 250 |
| Core Approvals (pending) | EN 50270: 2015 (EMC) IEC/EN 61000-6-4; EMC Directive 2014/35/EU IEC/EN/UL/CSA 61010 (Electrical Safety) FCC RoHS, China RoHS |
| Safety Approvals | ATEX II 2 GD Ex db ia IIC T4 Ex tb IIIC T85°C Ex db eb ia IIC T4 Tamb -55 to +75°C (-67 to 167 °F)
cULus Class I, Div 1, B, C & D Class II/III, E, F & G (pending) Tamb -55 to +75°C Class I Zone 1 AEx d ia IIC T4 (USA) Class I Zone 1 Ex d ia IIC T4 (Canada) IECEx Ex d b ia IIC T4 Ex tb IIIC T85°C Ex db eb ia IIC T4 Tamb -55 to +75°C (-67 to 167 °F) |
| Marine Approvals (pending) | Type approved to DNV, BV, Lloyds, ABS Location Classes: Temp B, Humidity B, Vibration A & C, EMC B |
| Other Approvals (pending) | BT SIG (Bluetooth), RED, FCC+, country-specific wireless approvals EN 61508:2010 SIL2 -55 °C to +75 °C, independently assessed by TÜV CCCF Inmetro CU TR-Ex (Eurasian Customs Union), Tamb -60 to +85°C (-76 to 185 °F) |
| Bluetooth communication security | Certificate-based mutual authentication. Encryption to AES128 |
| Warranty Period | 36 months from date of shipment. |
| ACCESSORIES | |
| Adjustable Mounting Bracket | Standard bracket (included). Large bracket (optional) |
| Sunshade | Plastic (included), stainless steel sunshade (optional) |
| Hand-Held Tester | Hand-Held Sonik Test Unit. featuring leak seeking function. Check with Honeywell for availability. |
| Hand Held Communicator | I.S. Android Smartphone. Download the Searchzone SonikTM App from Google Play Store |
| Part Number | Description |
| Instruments | |
|---|---|
| SZSK-SNGXX | Searchzone Sonik Ultrasonic Gas Leak Detector, SST, 3/4NPT with adjustable mount and sunshade |
| SZSK-SMGXX | Searchzone Sonik Ultrasonic Gas Leak Detector, SST, M25 with adjustable mount and sunshade |
| 029-5402-200 | Rugged Smart Hand Held (EU/UK) |
| 029-5401-000 | Zone 1 (IS) Rugged Smart Hand-Held (North America)* |
| 029-5401-200 | Zone 1 (15) Rugged Smart Hand-Held (EU)* |
| Accessories, Consumables & Spares | |
| 2331B1102 | Pole mount kit for Searchzone Sonlk standard adjustable mounting bracket |
| 2331B1112 | Pole mount kit for Searchzone Sonik large adjustable mounting bracket |
| 2331B1131 | Searchzone Sonik SST sunshade |
| 2331B1000 | Searchzone Sonik Hand Held Test Unit* |
| 2331B1020 | Large mounting plate to suit larger poles |
| 029-5403-000 | Multi- Region Field Communicator Charger (US/EU/UK) |
| 029-5410-000 | USB Cable with IS Barrier for use with 029-5401-000/2000 |
| Spares (Miscellaneous) | |
| 2331B1100 | Standard mounting plate |
| 2331B1130 | Plastic sunshade |
| 2331B1150 | Terminal block set (5 pack) |
| 2331B1160 | Antenna cover (5 pack) |
