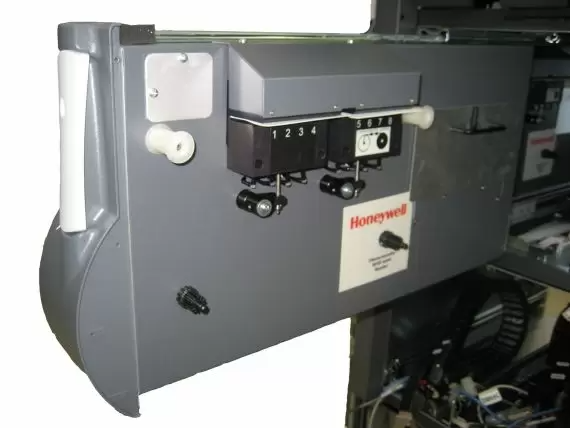

The Honeywell Vertex M Hazardous Gas Monitor is an economical way to install, augment or upgrade a gas monitoring system for industries using toxic. It provides a flexible 8 to 24 points of monitoring for use with up to 3 Chemcassette® analysers or combination 1 pyrolizer analyser/1 universal Chemcassette® analyser; comes in a small, space-saving cabinet; 110V or 220V power options; and uses the industry’s most reliable toxic gas monitoring technology, colorimetric Chemcassette®, which shows proof of a gas response through a telltale stain on the Chemcassette® tape. The Vertex M integrates easily into a factory automation system or HMI to serve the semiconductor, PV, nano, special chemical, lab and other High-Tech/Industrial environments.

Additional Features and Benefits:

▪ Extended tapes (90 days) provide longer monitoring life

▪ Additional pump and internal power module increase uptime

▪ The software can be configured without taking the unit offline

▪ Sampling points can be up to 400 feet (121m) from the monitor and routed to more than one analyser

Easy to Use:

▪ Touch screen for easy access to data

▪ Software updates via CD-ROM or network to all system components

▪ Configuration profile editing and data retrieval are all achievable without taking the unit offline

▪ Radio frequency identification tag (RFID) ensures Chemcassettes® are installed into the appropriately programmed analyser, eliminating human error

▪ On-line help system

Security:

▪ Multiple levels of password protection

▪ Reconfigure the security setup without taking the unit offline

Low Cost of Ownership:

▪ Small footprint and greater density of points reduce your cost per point

▪ Eight points per analyser lower Chemcassette® costs

▪ Maximised 24-point systems provide low cost per point as compared to other continuous monitors

▪ One system monitors up to three gas families and more than 40 gases

▪ You can split your sample into more than one analyser

Easy to Maintain:

▪ Uses cost-effective XP Chemcassettes®, providing up to three months of continuous monitoring

▪ Simplified replacement of Chemcassettes® and automated optics verification

▪ No dynamic calibration required

▪ No flow balancing

▪ Easy access to analysers, pumps, power supplies and touch screens from the front panel

▪ Onscreen interactive electronic manual

Advanced Communication:

▪ Built-in configurable PLCs with optional 64 relay contacts

▪ Standard OPC interface for easy integration into your existing factory automation system or HMI

▪ Optional Ethernet/CIP, LONWORKS®, DeviceNetTM, DF1Interface, PROFIBUS, Modbus Plus, Modbus/TCP or ControlNet outputs available

▪ Optional ChemCam camera permits viewing of stain, locally or remotely, for proof of gas event. The image is electronically saved for future retrieval

▪ Optional remote control/viewing software enables total visualisation of the monitor screens at a remote PC

Features and Benefits:

▪ Touch screen for easy data access

▪ Low cost of ownership with Chemcassettes®

▪ One system monitors up to 9 gas families/more than 40 gases
